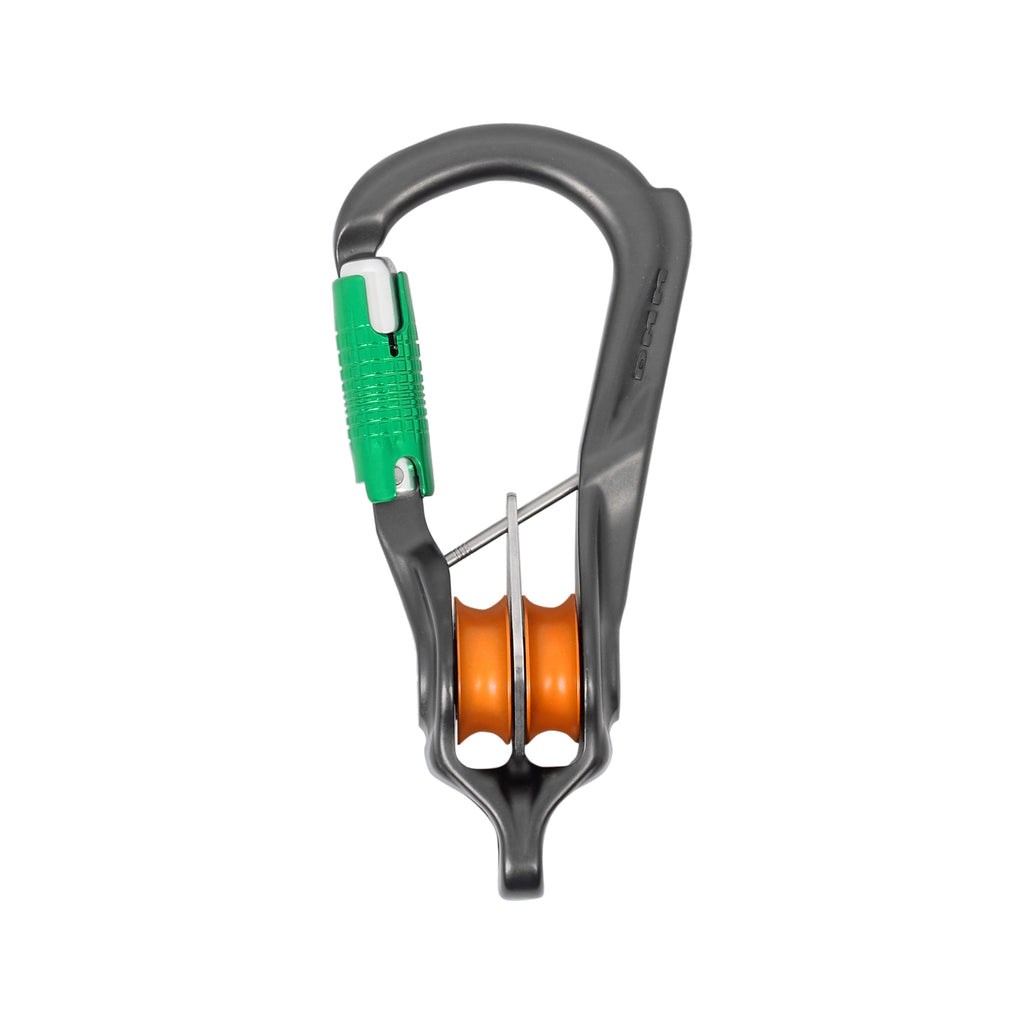

A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.

The uniquely profiled spine and captive bar aid in maintaining correct orientation.

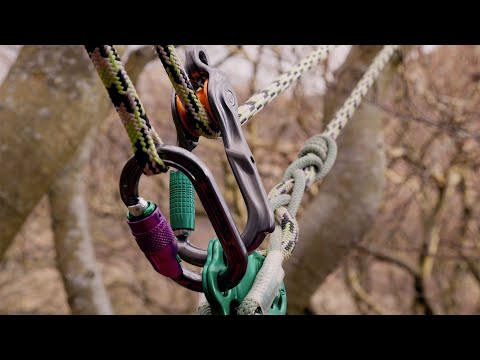

The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.

- Large sheave tread diameter for large bend radius

- High efficiency roller bearings

- Full strength becket accepts most connectors or direct textile connection

- Removable captive bar

- DMM iD optional

- Keylock nose for snag free operation

- Uniquely profiled spine to aid correct orientation

Product Code : A5871CB

Color : Matt Grey/Green

MBS (Major Axis) : 25kN

MBS (Minor Axis) : 7kN

MBS (Gate Open) : 7kN

WLL : 5kN

Dimension : 76x160mm

Weight 203g

Max rope diameter : 7-13mm

Certification :  EN12278:2007, EN362:2004
